Connection combination table
MULTI-SPLIT

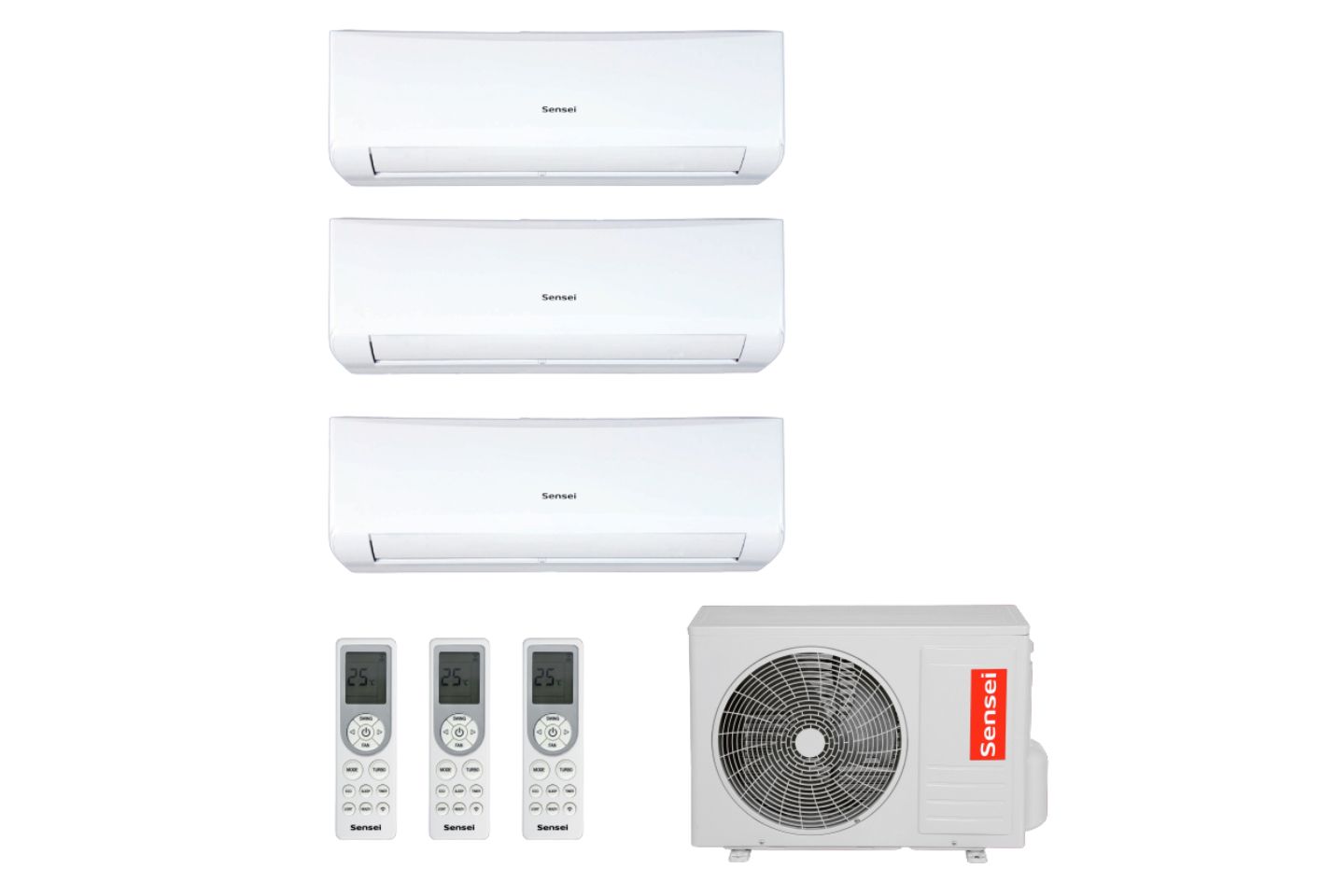

WALL-MOUNTED INDOOR UNITS WITH WI-FI · Indoor Units
SACM-09SKWA/I
Cooling: 2,6 kW
Heating: 2.8 kW
NEW Sensei 2024 multi-split systems: Inverter heating down to -20 °C, high-power DC Inverter, 4D airflow distribution, A++/A+ energy efficiency class, PANASONIC/GMCC compressor, WIFI module as standard. The upgraded multi-split system series combines the functions and capabilities of classic equipment. The climate system includes an outdoor unit and up to five indoor units of various types (wall-mounted, ducted, cassette, floor-ceiling). It is an innovative solution for air conditioning a group of rooms. Each room can have its own microclimate with optimal temperature levels and clean, fresh air.
MODELS
Official warranty
Delivery across Ukraine
Key advantages of multi-split systems:
- 1. The ability to connect from 2 to 5 indoor units (unlike a conventional split system with a single unit).
- 2. Low noise and vibration levels.
- 3. Efficient heating at low outdoor temperatures.
- 4. Inverter technology (enhances system capacity and ensures energy efficiency).
Control
The system is operated via remote controls and a central controller. This setup lets you manage a single unit in a room or a group of air conditioners from a central control station.
PACKAGE CONTENTS
- Indoor unit
- Outdoor unit
- Remote control
- Installation manual
- Warranty card
Got an error? Check its meaning here.
Building facade aesthetics
A multi-split system with a single outdoor unit doesn't spoil the building's appearance. Instead of 5 units on the facade, there is just 1.
Individual control of each unit
Air parameters in one room are independent of another. The electronic refrigerant-distribution system precisely maintains the temperature in each room.
Uneven load principle
The combined capacity of the indoor units can exceed the output of the outdoor unit. Uneven thermal load increases system efficiency and minimizes the outdoor unit's size.
Wide choice of indoor units
Various types of climate equipment can be used for room air conditioning. SENSEI offers a range of models with different designs and feature sets.
KEY SPECIFICATIONS
- Cooling (kW)
- 2,6
- Heating (kW)
- 2.8
- Refrigerant Type
- R32
- Remote Control
- Remote control
- Power Supply
- 220~240/50/1
- Electrical Protection Class
- Class I
- Moisture Protection Class
- IPX0
PERFORMANCE
- Power Consumption Cooling/Heating (kW)
- 34
- Air Flow (m³/h)
- 520
- Current Draw (A)
- 0.15
SOUND AND CONVENIENCE
- Indoor Unit Noise Level (dB)
- 38/34/21/19
INSTALLATION AND PIPING
- Pipe Diameter (mm)
- Ø6.35/Ø9. 52
- Operating Temperatures (Heating)
- -20～+30
- Operating Temperatures (Cooling)
- -15~+55
INDOOR UNIT DIMENSIONS AND WEIGHT
- Indoor Unit Dimensions (W×D×H)
- 792x 279x195
OUTDOOR UNIT DIMENSIONS AND WEIGHT
- Packaged Dimensions (W×H×D, mm)
- 871x290x352
- Weight / Packaged (kg)
- 9/11
