SDC-24HSI
SDC-24HSI
SDC-24HSI
SDC-24HSI

INVERTER · Ducted Air Conditioners

SDC-24HSI

Cooling: 7.2 kW
Heating: 7.9 kW

Ducted split systems from the Japanese brand SENSEI are semi-industrial units that traditionally combine impeccable quality, reliability, and energy efficiency. The equipment is well suited for heating / cooling medium and large spaces. These models blend seamlessly into any design concept without disrupting it. They deliver fresh air, maintain and regulate the indoor climate, and create comfortable conditions for work or rest.



Official warranty
Delivery across Ukraine
SENSEI ducted air conditioners: power combined with energy efficiency

Specifications

SENSEI ducted air conditioners are a fusion of technological innovations. The climate equipment offers various modes (heating, cooling, dehumidification, and air recirculation). The units are equipped with productive, powerful compressors running on safe R410A refrigerant. The systems can be installed in rooms of 60-120 sq. m and feature intelligent defrost functions that ensure efficient heat transfer from the indoor unit.

Applications

Ducted split systems are used for air conditioning in residential and public spaces. The air conditioners can be installed in offices, stores, shopping malls, apartments, and private homes. The equipment serves as either a standalone air-conditioning solution or part of a multi-split system.

Package contents

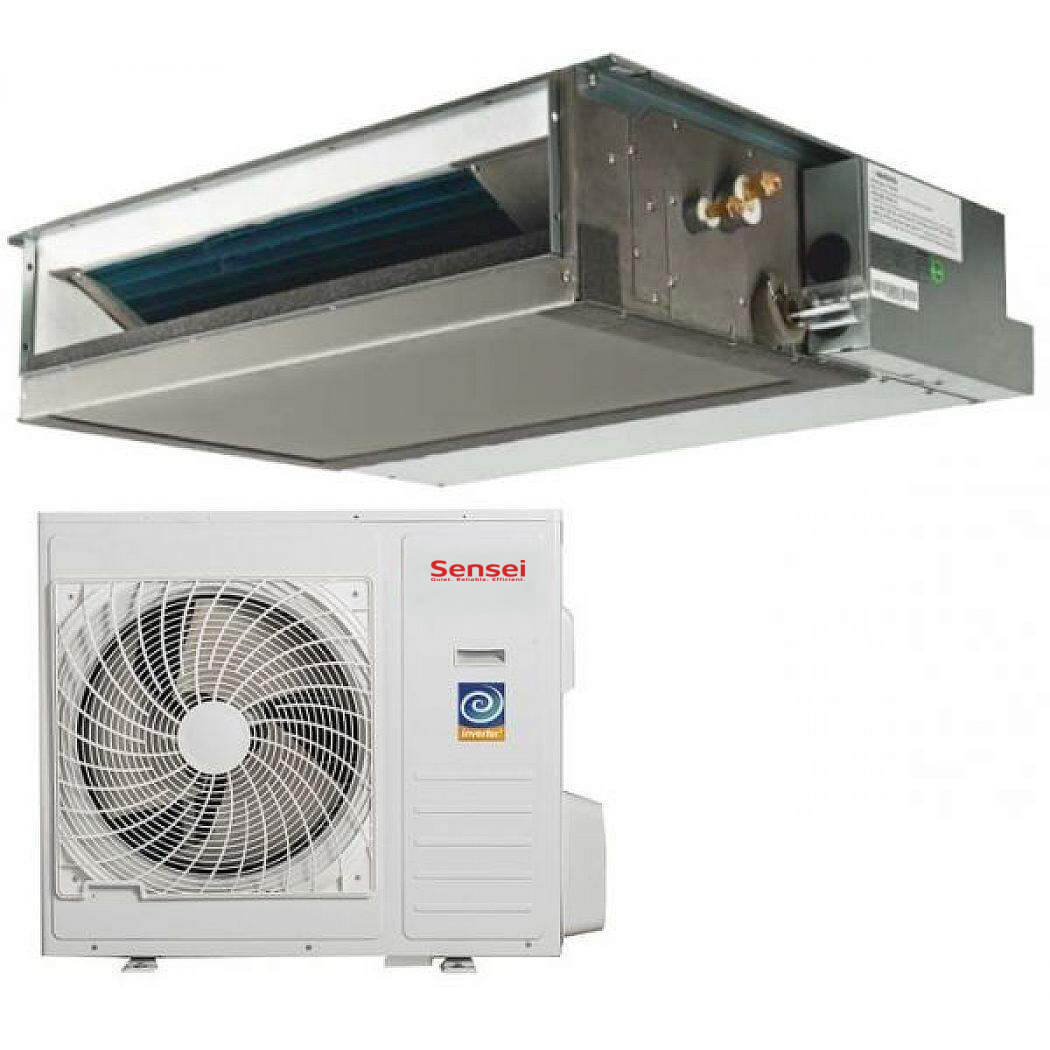

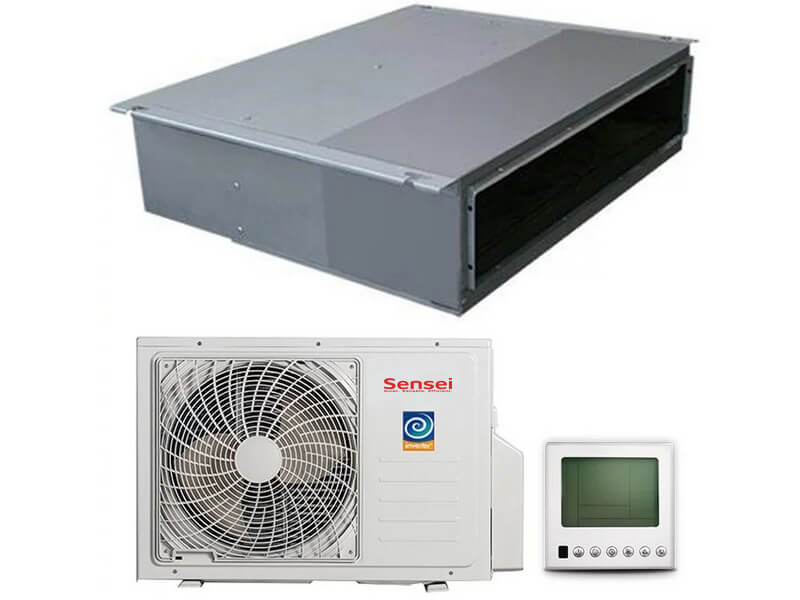

Ducted split systems consist of an indoor and an outdoor unit. A remote control is included.

PACKAGE CONTENTS

  • Indoor unit
  • Outdoor unit
  • Remote control
  • Installation manual
  • Warranty card

Got an error? Check its meaning here.

Minimal unit height

The ultra-slim body eliminates the need to significantly lower the ceiling height to install the air conditioner.

Fresh air supply

SENSEI split systems deliver air, distribute it evenly, and maintain the set parameters.

Low noise level

The innovative fan design ensures comfortable, silent operation.

Air intake options

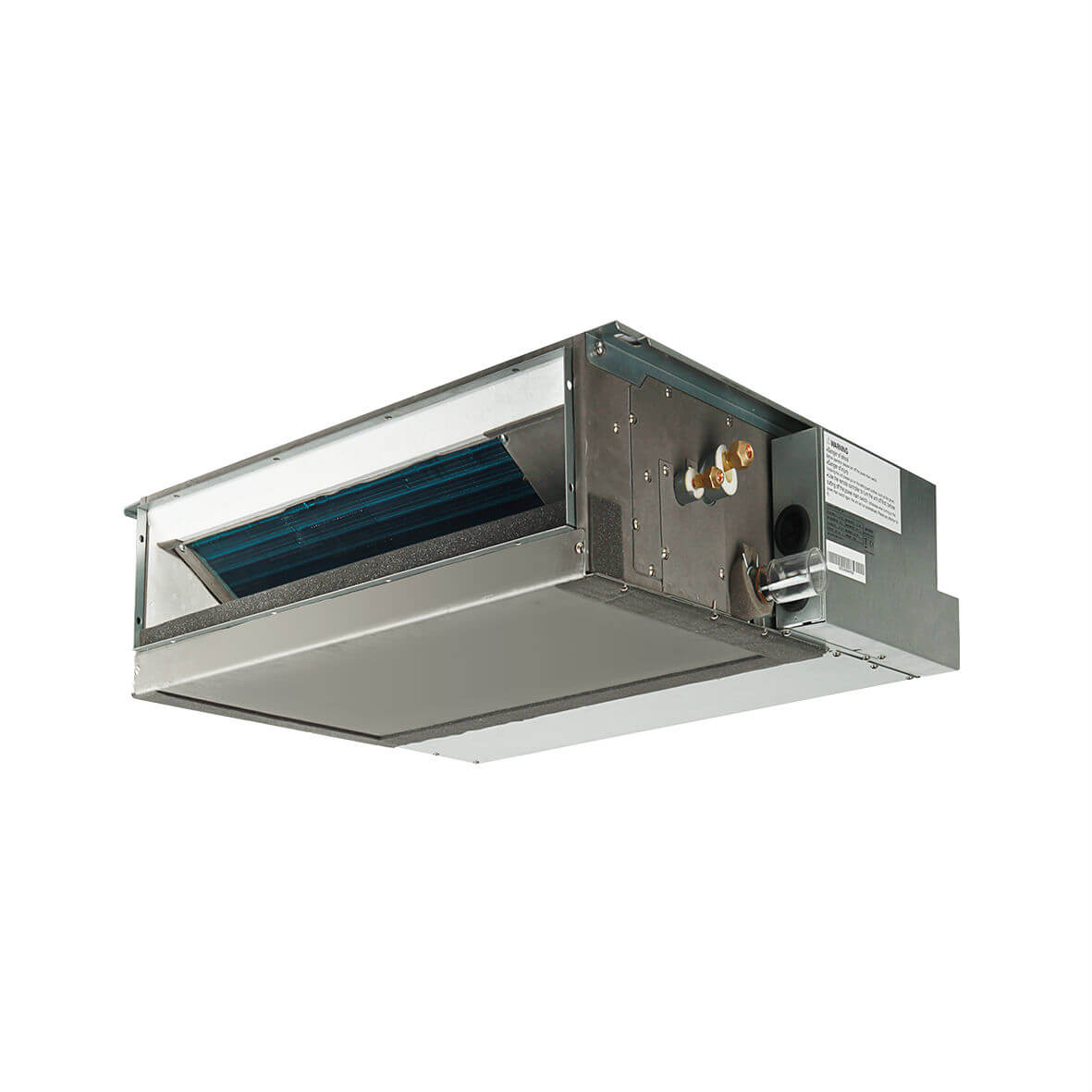

The indoor unit design offers two air-intake options: from below and from the rear. This provides flexibility when choosing the installation location.

Easy control

The system is operated with a remote control. The systems respond to commands from long distances.

Self-diagnostics

The equipment monitors unit and mode operation and is protected against incorrect connection to the power supply.

KEY SPECIFICATIONS

Cooling (kW)
7.2
Heating (kW)
7.9
Refrigerant Type
R32
Remote Control
wired remote control
Indoor Unit Power Parameters
220~240-1-50
Outdoor Unit Power Parameters
220~240-1-50
Rated Static Pressure (Pa)
35
Type
ROTARY
Manufacturer
GMCC
Charge Volume (kg)
1,40
Expansion Device
EEV

PERFORMANCE

Power Consumption Cooling/Heating (kW)
2230
EER Energy Efficiency
3,23
COP Energy Efficiency
3,71
Maximum Power Consumption (W)
4100
Maximum Current Draw (A)
18,1
Capacity (min~max, W)
7200 (2450~7850)
Current Draw (A)
10,40
Air Flow (CFM)
588/411/288

SOUND AND CONVENIENCE

Indoor Unit Noise Level (dB)
39/35/32
Outdoor Unit Noise Level (dB)
56

INSTALLATION AND PIPING

Maximum Height Difference (m)
30
Maximum Line Length (m)
50
Operating Temperatures (Heating)
16~30
Operating Temperatures (Cooling)
16~30
Operating Temperatures (card)
16~30
Drain Pipe Diameter (mm)
Ø32

INDOOR UNIT DIMENSIONS AND WEIGHT

Indoor Unit Dimensions (W×D×H)
1180×190×447

OUTDOOR UNIT DIMENSIONS AND WEIGHT

Packaged Dimensions (W×H×D, mm)
1350×285×565
Weight / Packaged (kg)
22,5/26,0
