HEAT

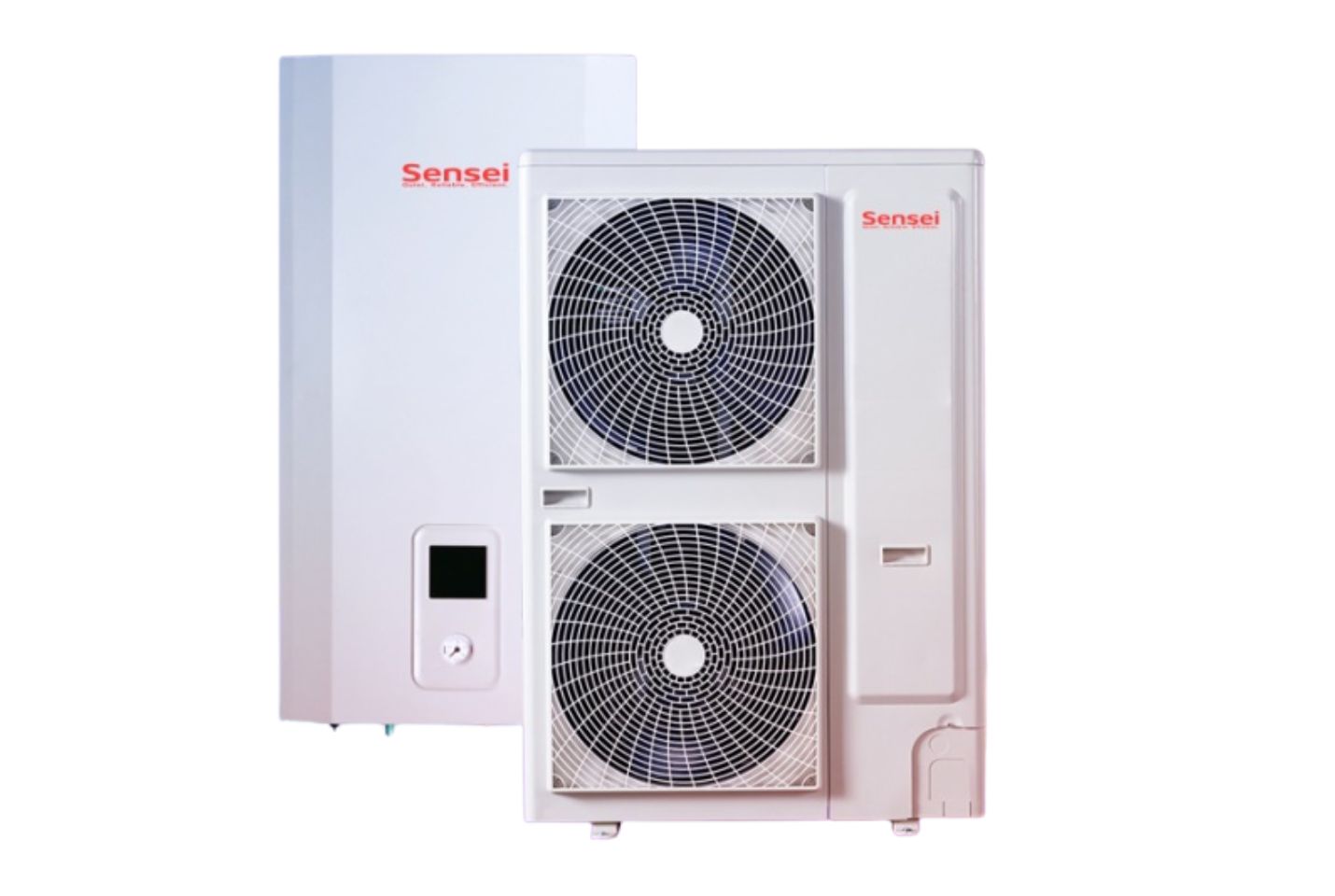

SPLIT R32 DC INVERTER · Air-to-Water Heat Pump
HPGS-V12HW/ HPGS-V12HN
Cooling: 10.0 kW
Heating: 12.0 kW
The Split series heat pump consists of an outdoor unit and an indoor unit (hydraulic module). Based on air-to-water heat pump technology, it captures thermal energy from the ambient air and transfers it to heat water, which is used to heat your home and supply domestic hot water — it can even cool your home when needed. Compared with other technologies, up to 75% of the required thermal energy is drawn from the ambient air.
Official warranty
Delivery across Ukraine
Split-type heat pump system
- Includes a hydraulic module, with no additional hot-water pipe insulation required.
- Hot water production all year round.
- Heating in winter and cooling in summer.
- A wide choice of solutions: underfloor heating, radiators, and fan coils.
- Enjoy outstanding home comfort even at low outdoor temperatures.
- Eco-friendly: uses R32 refrigerant.
Wide operating temperature range
Keep your home comfortable even in extreme outdoor temperatures.
Full performance at low ambient temperature
Thanks to a high pressure-ratio compressor, the heat pump delivers 85% of its rated capacity even at -15 ℃.
Hot water temperature range
- In cooling mode, the outlet water temperature range is 5~25 ℃.
- In heating mode, the outlet water temperature range is 25~60℃.
- In hot water mode, the outlet water temperature range is 40~60 ℃.
Harvesting energy from the ambient air
The heat pump captures thermal energy from the ambient air and transfers it to heat water.
Up to 75% of the required thermal energy is drawn from the ambient air.
Wired controller with touch screen
A touch-screen wired controller comes as standard, enabling more functions and easier operation.
The wired controller can be detached from the hydraulic module and installed in a room to sense room temperature.
An additional cover is provided.
Wired controller functions
- Window-style interface, easy to operate and read
- Mode adjustment, temperature settings, heating mode
- Cooling mode, DHW mode, combined mode
- Weekly timer function
- Electric heater
- Forced defrosting
- Sterilization
- Anti-freeze protection
- WIFI control (optional)
PACKAGE CONTENTS
- Indoor unit
- Outdoor unit
- Remote control
- Installation manual
- Warranty card
Got an error? Check its meaning here.
High pressure-ratio compressor
High pressure-ratio compressor — up to 13 — with better performance at low ambient temperatures. Renowned GMCC brand. DC rotary inverter compressor. Refrigerant: R32.
DC fan motor
Brushless DC fan motor. Higher efficiency, low noise level
Larger heat exchanger
A larger heat exchanger to match the required heat-exchange area at low ambient temperatures. Flat-type fins improve defrosting efficiency.
Integrated PCB
The integrated PCB for the single-phase unit reduces the risk of damage to each component.
Plate heat exchanger
Efficient heat transfer for both heating and cooling. Compact footprint. Withstands high temperatures and high pressure.
Inverter water pump
High-efficiency inverter water pump. Brand: Wilo Para series. Water head is 9 m for the 8 kW, 12 kW, and 16 kW hydronic modules. CE and VDE compliant, 50/60 Hz.
Expansion tank
When water heats up, it expands and its pressure rises. Without room for thermal expansion, serious problems can occur in the water system, including failure or rupture. The expansion tank maintains stable pressure in the water system. Pre-charge pressure: 0.15 MPa. Volume: 2 L.
KEY SPECIFICATIONS
- Cooling (kW)
- 10.0
- Heating (kW)
- 12.0
- Refrigerant Type
- R32
- Power Supply
- 230V/1Ph/50Hz
- Capacity (kW)
- 12
- Poles
- 6
- Speed (rps)
- 12~120
- Oil
- POE/1000mL
- Motor Type
- Brushless DC motor
- Type
- Rotary DC Inverter
- Number of Fans
- 1
- Heat Exchanger Rows
- 2.5
- Charge Volume (kg)
- 3,1
- Tube Pitch × Row Pitch (mm)
- 25*21.7
- Heat Exchanger Tube Type and Diameter
- Ø7 grooved copper pipe
- Fin Spacing (mm)
- 1.6
- Heat Exchanger Fin Type
- Hydrophilic aluminum
- Heat Exchanger Dimensions
- 1003*750*43.3 mm + 580*750*21.65
- Number of Turns
- 5
- Model
- EKTF310D43UMT
- Pipe Diameter (OD, mm)
- Ø9.52
- Expansion Device
- EXV
- Refrigerant Top-Up
- (Total pipeline length - 5)m*30g/m
- Compressor Manufacturer
- GMCC
- Safety Valve (kPa)
- 600
- Expansion Tank (volume, L)
- 2
- Expansion Tank (max pressure, kPa)
- 800
- Expansion Tank (rated pressure, kPa)
- 150
- Heat Exchanger Type
- Plate
- Heat Exchanger Volume (L)
- 1.22
- Water Pump Brand
- wilo
- Water Pump Model
- Para 25/9
- Pump Head (m)
- 9
- Number of Phases
- 1
PERFORMANCE
- Air Flow (m³/h)
- 4000 m3/h
- EER Energy Efficiency
- 2.7 kW/kW
- COP Energy Efficiency
- 4.14
- Maximum Current Draw (A)
- 22
- Energy Efficiency Class (water 35°C)
- A++
- Energy Efficiency Class (water 55°C)
- A++
- Max. Power Consumption (kW)
- 5
- Energy Efficiency Class (Cooling)
- -5~46°C
- Energy Efficiency Class (Heating)
- -28~43°C
- Power Consumption (kW)
- 2.9
- Hot Water Temperature
- 40~60°C
SOUND AND CONVENIENCE
- Outdoor Unit Noise Level (dB)
- 68
INSTALLATION AND PIPING
- Maximum Line Length (m)
- 50 m
- Liquid Pipe Diameter (mm)
- Ø9.52
- Gas Pipe Diameter (mm)
- Ø15.88
- Drain Pipe Diameter (mm)
- DN20
- Height Difference (above, m)
- 10
- Height Difference (below, m)
- 10
- Connecting Pipe Diameter (outlet)
- DN32
- Connecting Pipe Diameter (inlet)
- DN32
OUTDOOR UNIT DIMENSIONS AND WEIGHT
- Net/Gross Weight (kg)
- 67.5/70.5 kg
- Packaged Dimensions (W×H×D, mm)
- 1075*875*495 mm
- Outdoor Unit Dimensions (W×D×H)
- 1032*810*445 mm
