HEAT
MONOBLOC R32 DC INVERTER · Air-to-Water Heat Pump

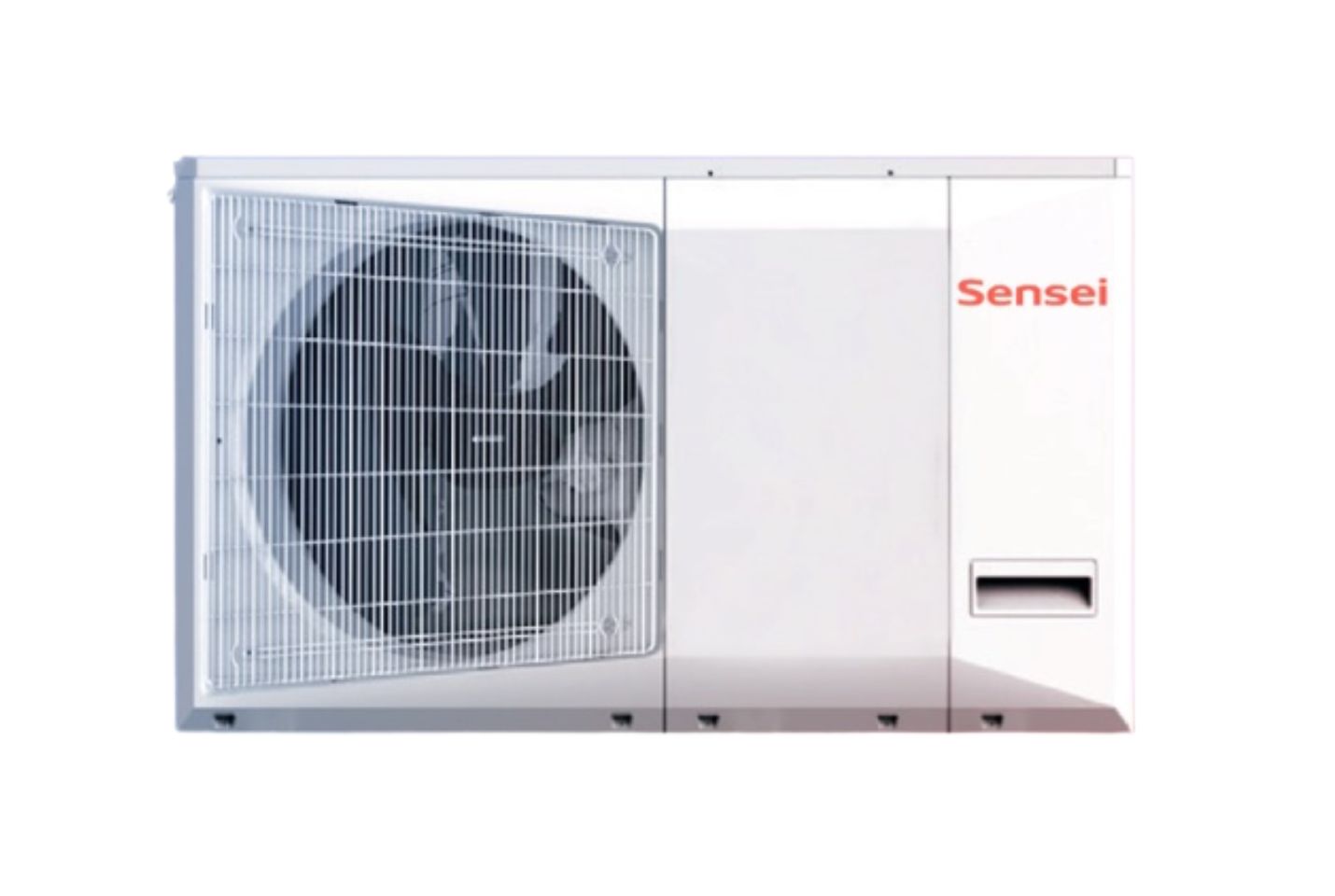

HPGM-8BP
Cooling: 7,0 kW kW
Heating: 8,0 kW kW
A monobloc heat pump is a compact system with a single unit installed outdoors. This means your available indoor space stays untouched — it is designed for installation in any type of property, especially homes with limited space. Based on air-to-water heat pump technology, it harnesses thermal energy from the environment and transfers it to heat water, which is used to heat your home and supply domestic hot water — it can even cool your home when needed. Compared with other technologies, up to 75% of the required thermal energy is drawn from the ambient air.
Official warranty
Delivery across Ukraine
Control system
The monobloc heat pump offers several types of control systems to meet different user needs.
Wired controller
- Operating mode control
- Weekly timer
- Electric heater
- Forced defrosting
- Sterilization
- Anti-freeze protection
- Wi-Fi control
Dry contact
3 standard and 4 custom dry contacts, plus 3 standard and 3 custom outputs (230 V).
Modbus control
The built-in Modbus port allows the system to be integrated with third-party controllers or a computer.
Built-in hydraulic module
A fully integrated system with no refrigerant handling required.
- Plate heat exchanger
- Expansion tank
- Water pump
System versatility
- Heating in winter
- Cooling in summer
- Hot water all year round
- Connections: underfloor heating, radiators, fan coils
High energy efficiency
The use of inverter compressors, DC fans, PHE, and EXV ensures stable operation even at low temperatures.
Eco-friendly R32 refrigerant
- 0 ODP (does not deplete the ozone layer)
- GWP 675
- Up to 77% lower CO₂ emissions compared with R410A
Multi-level protection
Current protection
- Overload protection
Voltage protection
- High voltage
- Low voltage
Pressure protection
- High pressure
- Low pressure
Overheat protection
- Discharge temperature
- Condenser temperature
- IPM protection
Anti-freeze protection
- Water temperature monitoring
- Refrigerant temperature monitoring
Quiet night mode
Automatically reduces the noise level by up to −3 dB(A) at night.
PACKAGE CONTENTS
- Indoor unit
- Outdoor unit
- Remote control
- Installation manual
- Warranty card
Got an error? Check its meaning here.
DC inverter compressor
Pressure ratio up to 13, high performance in low ambient temperatures.
DC motor
Brushless DC motor: high efficiency, low noise level.
Refrigerant cooling
Keeps the main PCB operating within the proper temperature range for greater reliability.
High-efficiency BPHE heat exchanger
Excellent air-duct design that withstands high temperatures and high pressure.
EXV valve
Precise refrigerant flow control and regulation, 0-480 pulses
Inverter water pump
High-efficiency inverter water pump with a high water head of up to 9 m.
KEY SPECIFICATIONS
- Cooling (kW)
- 7,0 kW
- Heating (kW)
- 8,0 kW
- Refrigerant Type
- R32
- Power Supply
- 220~240V/1Ph/50Hz
- Capacity (kW)
- 3
- Type
- R32
- Expansion Device
- EXV
- Refrigerant Top-Up
- 1.6 kg
- Expansion Tank (volume, L)
- 5
- Number of Phases
- 1
- Permissible Operating Pressure (MPa)
- 0.3
- Inverter Water Pump
- Yes
- Water-Side Resistance (kPa)
- 20
- Evaporator (water volume, L)
- 1,08
- Maximum Permissible Pressure (MPa)
- 4,4
PERFORMANCE
- Energy Efficiency Class
- A+++
- Maximum Current Draw (A)
- 20+13.6
- Max. Power Consumption (kW)
- 4.4+3.0
- Energy Efficiency Class (Cooling)
- 5~25 °C
- Energy Efficiency Class (Heating)
- 25~62 °C
- SEER/SCOP Energy Efficiency
- 4,90/6,80 kW/kW
- Hot Water Temperature
- 25~60 °C
SOUND AND CONVENIENCE
- Outdoor Unit Noise Level (dB)
- 65
INSTALLATION AND PIPING
- Operating Temperatures (card)
- -25~50 °C
- Connecting Pipe Diameter (outlet)
- DN25
- Connecting Pipe Diameter (inlet)
- DN25
OUTDOOR UNIT DIMENSIONS AND WEIGHT
- Net/Gross Weight (kg)
- 108,9/127,3 kg
- Packaged Dimensions (W×H×D, mm)
- 1420×535×1045 mm
- Outdoor Unit Dimensions (W×D×H)
- 1335x475x875 mm
