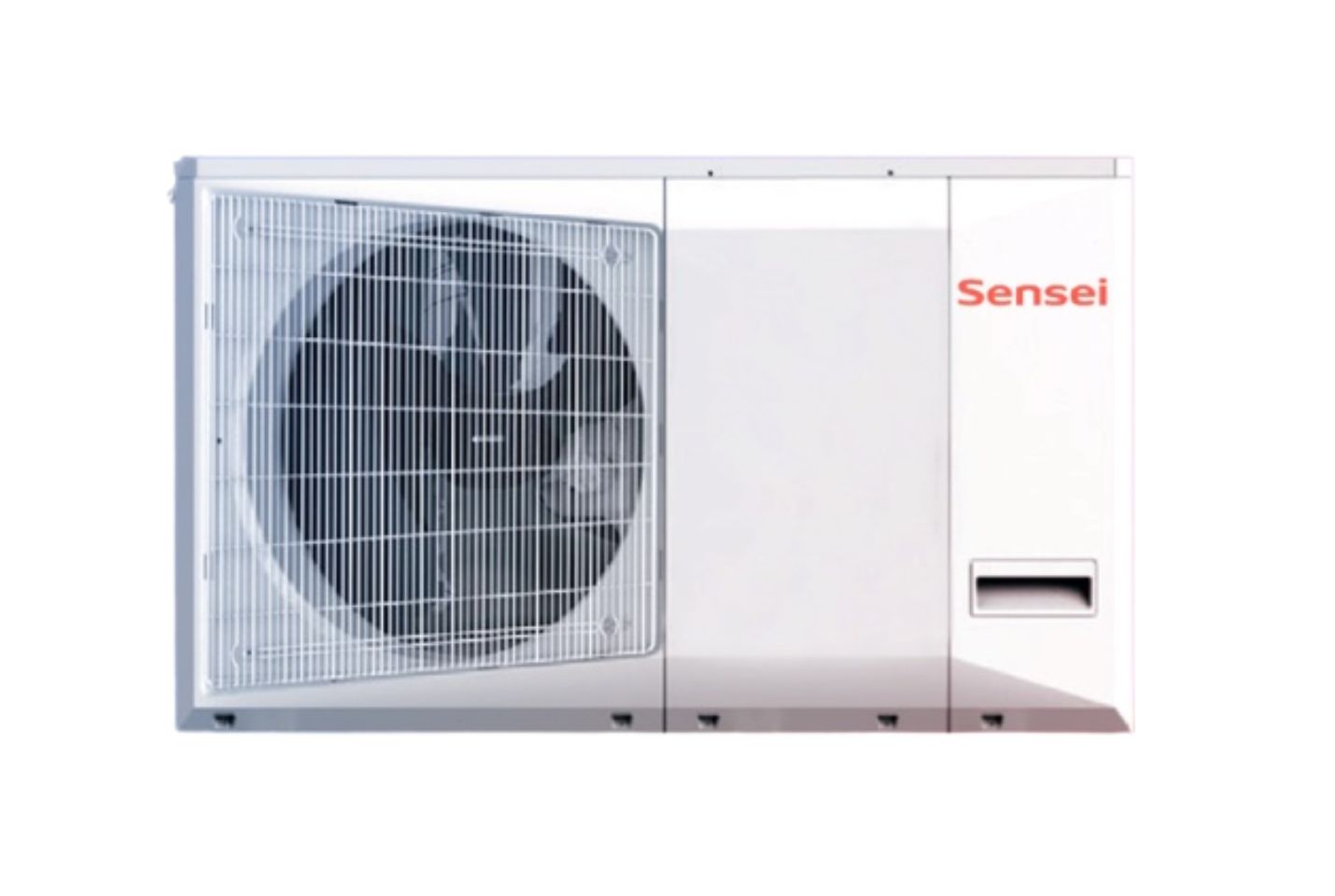

MONOBLOC R32 DC INVERTER · Air-to-Water Heat Pump
HPGM-10BP
Cooling: 10,0 kW kW
Heating: 9,0 kW kW
A monobloc heat pump is a compact system with a single unit installed outdoors. This means your available indoor space stays untouched — it is designed for installation in any type of property, especially homes with limited space. Based on air-to-water heat pump technology, it harnesses thermal energy from the environment and transfers it to heat water, which is used to heat your home and supply domestic hot water — it can even cool your home when needed. Compared with other technologies, up to 75% of the required thermal energy is drawn from the ambient air.
Official warranty
Delivery across Ukraine
Control system
The monobloc heat pump offers 3 different types of control systems to meet specific customer requirements.
Wired controller
Operating mode control
Weekly timer function
Electric heater
Forced defrosting
Sterilization
Anti-freeze protection
WiFi function
Dry contact
The heat pump reserves 3 dry contacts as standard and 4 dry contacts as custom, plus 3 standard output contacts and 3 custom outputs, which are 230 V output terminals.
Modbus control
The heat pump's outdoor unit board has a built-in Modbus control port, so it can be connected to third-party controllers or a computer via the Modbus protocol.
Built-in hydraulic module
The monobloc is a fully packaged unit in which the indoor and outdoor units are combined into a single module. It requires no refrigerant piping work, since the monobloc's outdoor unit connects to the water lines only. In addition, hydraulic components such as a plate heat exchanger, expansion tank, and water pump are included.
Many applications in one system
The system can provide heating in winter and cooling in summer, and can also produce hot water all year round. Various terminal equipment can be connected: underfloor heating, radiators, and fan coils
High energy efficiency
Thanks to advanced components and technologies — such as high pressure-ratio DC inverter compressors, DC fan motors, PHE, EXV, and more — the monobloc heat pump system delivers high efficiency in low ambient temperature environments.
Eco-friendly R32 refrigerant
R32 (HFC-32) is an environmentally friendly refrigerant with 0 ODP and 675 GWP, featuring low carbon emissions and no harm to the ozone layer. Thanks to its lower GWP and refrigerant charge volume, R32 helps protect the environment and preserve HFC quotas, reducing CO2 emissions by 77% compared with R410a.
Multiple protection
A variety of built-in protection measures ensure long-term stable and safe operation of the entire heat pump system.
Current protection
System protection against current overload
Voltage protection
System protection against high voltage
System protection against low voltage
Pressure protection
High pressure protection
Low pressure protection
Overheat protection
Discharge temperature
Condenser coil temperature
IPM overheat protection
Anti-freeze protection
Water temperature sensing
Refrigerant temperature sensing
Quiet night mode
With a simple controller setting, the heat pump system can be programmed to enter night mode, which reduces noise by 3 dB(A).
PACKAGE CONTENTS
- Indoor unit
- Outdoor unit
- Remote control
- Installation manual
- Warranty card
Got an error? Check its meaning here.
DC inverter compressor
Pressure ratio up to 13, high performance in low ambient temperatures.
DC motor
Brushless DC motor: high efficiency, low noise level.
Refrigerant cooling
Keeps the main PCB operating within the proper temperature range for greater reliability.
High-efficiency BPHE heat exchanger
Excellent air-duct design that withstands high temperatures and high pressure.
EXV valve
Precise refrigerant flow control and regulation, 0-480 pulses
Inverter water pump
High-efficiency inverter water pump with a high water head of up to 9 m.
KEY SPECIFICATIONS
- Cooling (kW)
- 10,0 kW
- Heating (kW)
- 9,0 kW
- Refrigerant Type
- R32
- Power Supply
- 220~240V/1Ph/50Hz
- Capacity (kW)
- 3
- Type
- R32
- Expansion Device
- EXV
- Refrigerant Top-Up
- 1.8 kg
- Expansion Tank (volume, L)
- 5
- Number of Phases
- 1
- Permissible Operating Pressure (MPa)
- 0.3
- Inverter Water Pump
- Yes
- Water-Side Resistance (kPa)
- 25
- Evaporator (water volume, L)
- 1,08
- Maximum Permissible Pressure (MPa)
- 4,4
PERFORMANCE
- Energy Efficiency Class
- A+++
- Maximum Current Draw (A)
- 22+13.6
- Max. Power Consumption (kW)
- 4.8+3.0
- Energy Efficiency Class (Cooling)
- 5~25 °C
- Energy Efficiency Class (Heating)
- 25~62 °C
- SEER/SCOP Energy Efficiency
- 4,98/6,25 kW/kW
- Hot Water Temperature
- 25~60 °C
SOUND AND CONVENIENCE
- Outdoor Unit Noise Level (dB)
- 66
INSTALLATION AND PIPING
- Operating Temperatures (card)
- -25~50 °C
- Connecting Pipe Diameter (outlet)
- DN25
- Connecting Pipe Diameter (inlet)
- DN25
OUTDOOR UNIT DIMENSIONS AND WEIGHT
- Net/Gross Weight (kg)
- 126,3/144,0 kg
- Packaged Dimensions (W×H×D, mm)
- 1420×535×1045 mm
- Outdoor Unit Dimensions (W×D×H)
- 1335x475x875 mm
