INVERTER R410A · Cassette Air Conditioners
SCX-18TW/SX-18TW
The Sensei SCX-18TW/SX-18TW cassette air conditioner is a modern inverter split system designed for effective air conditioning of spaces up to 50 m². The model combines high performance, even air distribution, and energy-efficient operation, making it an optimal solution for offices, stores, cafes, and commercial and residential spaces.
Characteristics
The air conditioner is equipped with an inverter compressor that maintains precise temperature control, reduces noise levels, and helps save electricity. The system runs on modern R410A refrigerant, ensuring efficient heat transfer and stable equipment operation.
The cassette design of the indoor unit distributes air evenly in four directions, creating comfortable conditions without drafts. The compact dimensions of the indoor unit allow easy installation in a suspended ceiling and seamless integration into any interior.
Applications
Sensei semi-industrial cassette split systems are used for air conditioning:
- offices
- stores and shopping malls
- cafes and restaurants
- conference halls
- salons
- commercial and public spaces
The equipment is designed for effective cooling, heating, ventilation, and dehumidification in medium and large spaces. The system can be used as a standalone air conditioning solution or as part of a multi-split system.
Package contents
The Sensei SCX-18TW/SX-18TW cassette split system includes:
- an indoor unit

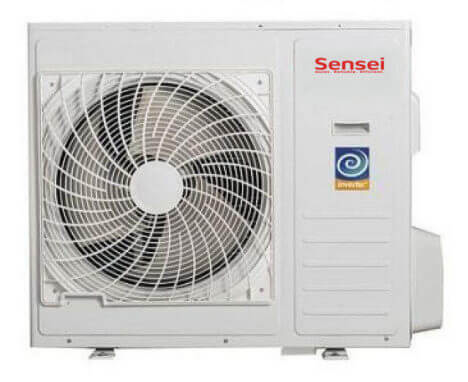

- an outdoor unit
- a decorative panel
- a remote controller
- an installation kit
- a user manual
PACKAGE CONTENTS
- Indoor unit
- Outdoor unit
- Remote control
- Installation manual
- Warranty card
Got an error? Check its meaning here.
Air distribution system
The key advantage of cassette-type split systems is their unique air-distribution system. Airflow spreads in 4 directions, evenly cooling or heating a large room area and maintaining the set parameters. The air-distribution louvers change their angle, enabling a gradual temperature change.
Universal installation
Cassette air conditioners can be installed in rooms with medium or high ceilings. Installation can be carried out during renovation work or after it.
Set of essential functions
The split systems come with a set of essential functions for creating and maintaining a comfortable indoor climate. The equipment features night mode, self-diagnostics, and a remote control for adjusting settings.
KEY SPECIFICATIONS
- Cooling (kW)
- 5.27
- Heating (kW)
- 5.82
- Recommended Area (m²)
- 50
- Refrigerant Type
- R410A
- Type
- rotary
- Pipe Diameter (OD, mm)
- Ø6.35/Ø9.53 (1/4"/3/8")
- Expansion Device
- EEV
- LCD Display
- yes
PERFORMANCE
- Air Flow (m³/h)
- 1100
SOUND AND CONVENIENCE
- Indoor Unit Noise Level (dB)
- 35
- Outdoor Unit Noise Level (dB)
- 50
INSTALLATION AND PIPING
- Maximum Height Difference (m)
- 15
- Maximum Line Length (m)
- 25
- Operating Temperatures (Heating)
- -7 °C to +24 °C
- Operating Temperatures (Cooling)
- -5 °C to +43 °C
INDOOR UNIT DIMENSIONS AND WEIGHT
- Indoor Unit Weight (kg)
- 24
- Indoor Unit Dimensions (W×D×H)
- 840×230×840
OUTDOOR UNIT DIMENSIONS AND WEIGHT
- Outdoor Unit Weight (kg)
- 38
- Outdoor Unit Dimensions (W×D×H)
- 430×720×310 mm
