ON-OFF · Cassette Air Conditioners
SCC-24HSO
Semi-industrial SENSEI cassette air conditioners are the ideal solution for rooms with complex T- and L-shaped layouts. The split system delivers even air distribution without sharp temperature swings. The models in this series are suitable for round-the-clock operation and can be installed in both residential and commercial spaces. Cassette split systems manage the indoor climate and improve air quality by removing dust particles and allergens. It is a technological solution designed to enhance climate conditions in offices, shopping malls, and other commercial facilities.
SENSEI cassette air conditioners - effective climate control for large spaces
Specifications
Cassette split systems are semi-industrial climate equipment distinguished by high performance and functionality. The air conditioners can operate in heating, cooling, dehumidification, and ventilation modes. SENSEI models are equipped with high-efficiency compressors running on safe R410A refrigerant. The compact indoor unit allows the systems to be installed in rooms of various sizes without taking up free space or disrupting the interior.
Applications
Semi-industrial cassette split systems are used for air conditioning in offices, shops and shopping malls, cafes, restaurants, and other public spaces. The climate equipment is designed for cooling / heating / dehumidification / ventilation of large facilities. It can serve as the primary air conditioning unit or as part of a multi-split system.
Package Contents

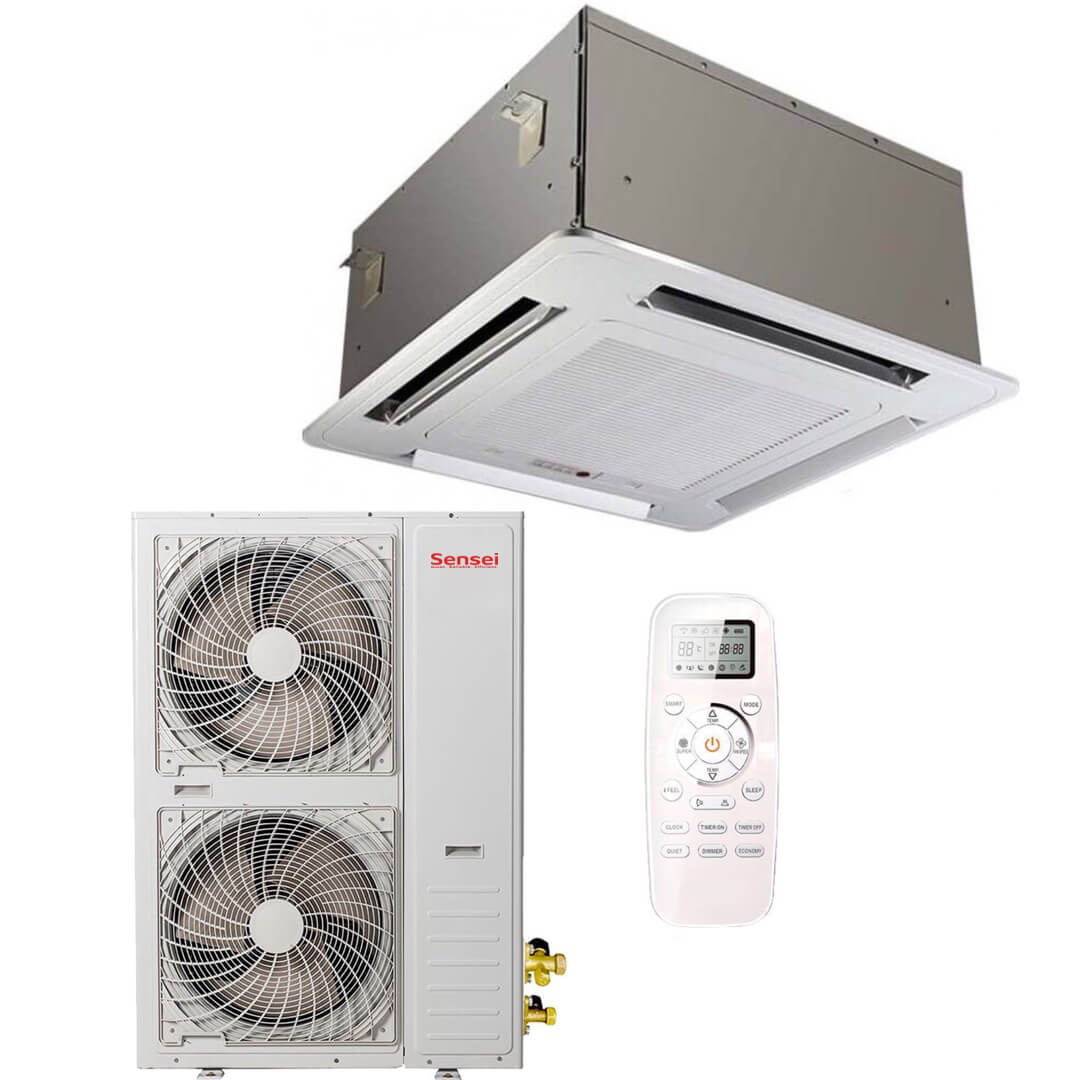

The cassette-type climate system includes an indoor and an outdoor unit. A remote control is included.
PACKAGE CONTENTS
- Indoor unit
- Outdoor unit
- Remote control
- Installation manual
- Warranty card
Got an error? Check its meaning here.
Air distribution system
The key advantage of cassette-type split systems is their unique air-distribution system. Airflow spreads in 4 directions, evenly cooling or heating a large room area and maintaining the set parameters. The air-distribution louvers change their angle, enabling a gradual temperature change.
Universal installation
Cassette air conditioners can be installed in rooms with medium or high ceilings. Installation can be carried out during renovation work or after it.
Set of essential functions
The split systems come with a set of essential functions for creating and maintaining a comfortable indoor climate. The equipment features night mode, self-diagnostics, and a remote control for adjusting settings.
KEY SPECIFICATIONS
- Cooling (kW)
- 7.3
- Heating (kW)
- 7.6
- Refrigerant Type
- R410A
- Remote Control
- IR remote control
- Indoor Unit Power Parameters
- 220~240-1-50
- Type
- ROTARY
- Manufacturer
- Highly
- Charge Volume (kg)
- 1,58
- Design Pressure H/L (MPa)
- 4.8/1.6
- Model
- ASH280MV-C8DU
- Expansion Device
- Throttle valve
PERFORMANCE
- Power Consumption Cooling/Heating (kW)
- 2425
- Air Flow (m³/h)
- 1100/1000/900
- COP Energy Efficiency
- 3,01
- Maximum Power Consumption (W)
- 3254
- Maximum Current Draw (A)
- 15,5
- Capacity (min~max, W)
- 7300
- Current Draw (A)
- 10,5
SOUND AND CONVENIENCE
- Indoor Unit Noise Level (dB)
- 43/41/38
INSTALLATION AND PIPING
- Pipe Diameter (mm)
- Φ9.52/Φ15.88(3/8"/5/8")
- Maximum Height Difference (m)
- 15
- Maximum Line Length (m)
- 30
- Operating Temperatures (Heating)
- 16~30
- Operating Temperatures (Cooling)
- 16~30
- Operating Temperatures (card)
- 16~30
- Drain Pipe Diameter (mm)
- dΦ32
INDOOR UNIT DIMENSIONS AND WEIGHT
- Indoor Unit Dimensions (W×D×H)
- 840x248x840
OUTDOOR UNIT DIMENSIONS AND WEIGHT
- Packaged Dimensions (W×H×D, mm)
- 996x370x956
- Weight / Packaged (kg)
- 28/35
